splash::CollectionType Class Reference

#include <CollectionType.hpp>

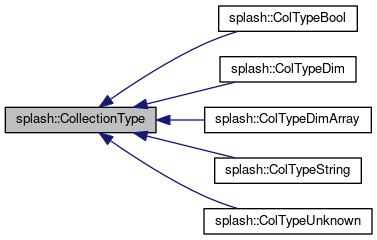

Inheritance diagram for splash::CollectionType:

Public Member Functions
const H5DataType &	getDataType () const
virtual size_t	getSize () const =0
virtual std::string	toString () const =0
virtual	~CollectionType ()

Detailed Description

Describes the datatype to be used for writing/reading HDF5 data to/from disk.

Definition at line 40 of file CollectionType.hpp.

Constructor & Destructor Documentation

~CollectionType()

virtual splash::CollectionType::~CollectionType ( )

inlinevirtual

Destructor

Definition at line 71 of file CollectionType.hpp.

Member Function Documentation

getDataType()

const H5DataType& splash::CollectionType::getDataType ( ) const

inline

Returns a (implementation specific) reference to the datatype.

Returns

the datatype

Definition at line 49 of file CollectionType.hpp.

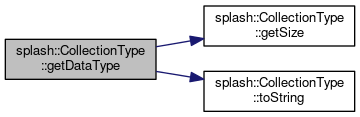

Here is the call graph for this function:

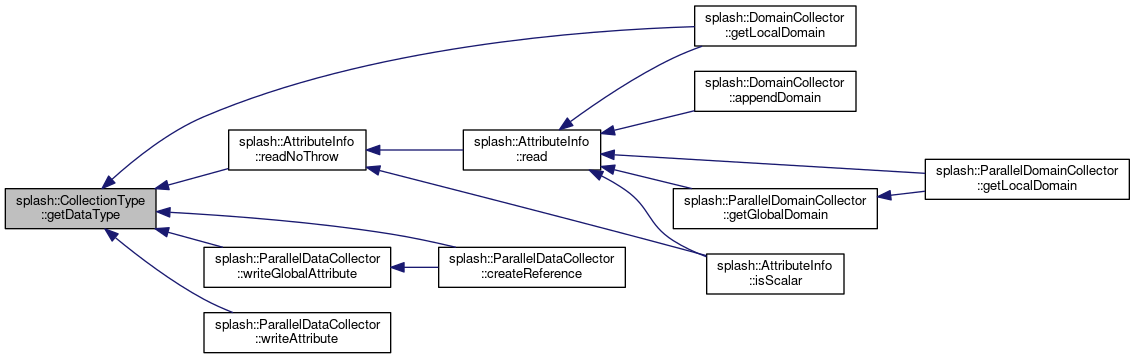

Here is the caller graph for this function:

getSize()

virtual size_t splash::CollectionType::getSize ( ) const

pure virtual

Returns the size in bytes of the datatype.

Returns

size of datatype in bytes

Implemented in splash::ColTypeString, splash::ColTypeBool, splash::ColTypeDim, splash::ColTypeDimArray, and splash::ColTypeUnknown.

Here is the caller graph for this function:

toString()

virtual std::string splash::CollectionType::toString ( ) const

pure virtual

Returns a human-readable representation of the datatype.

Returns

the name of the datatype as a string

Implemented in splash::ColTypeString, splash::ColTypeBool, splash::ColTypeDimArray, splash::ColTypeDim, and splash::ColTypeUnknown.

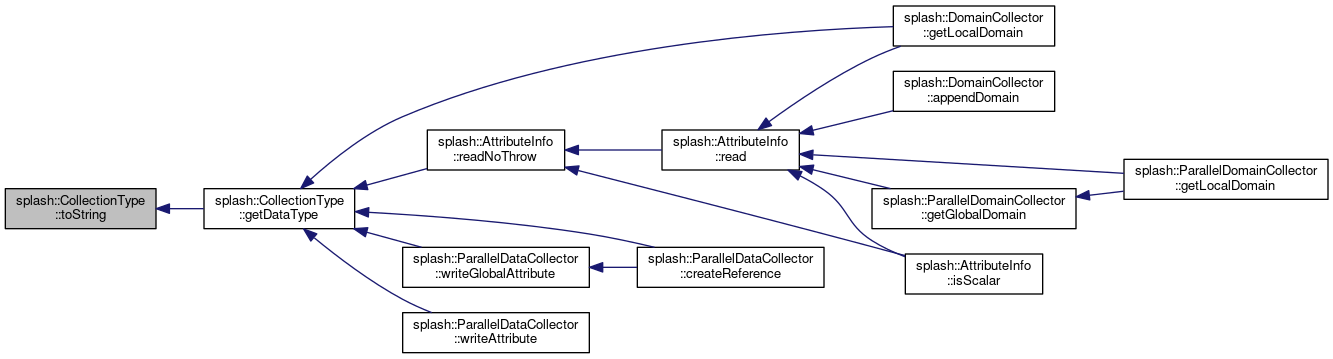

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• libSplash/src/include/splash/CollectionType.hpp
