splash::Dimensions Class Reference

#include <Dimensions.hpp>

Public Member Functions
	Dimensions (void)
	Dimensions (hsize_t x, hsize_t y, hsize_t z)
hsize_t &	operator[] (const hsize_t t)
const hsize_t &	operator[] (const hsize_t t) const
Dimensions	operator+ (Dimensions const &other) const
Dimensions	operator- (Dimensions const &other) const
Dimensions	operator* (Dimensions const &other) const
Dimensions	operator/ (Dimensions const &other) const
Dimensions	operator+= (Dimensions const &rhs)
Dimensions	operator-= (Dimensions const &rhs)
bool	operator== (Dimensions const &other) const
bool	operator!= (Dimensions const &other) const
std::string	toString () const
hsize_t *	getPointer ()
const hsize_t *	getPointer () const
size_t	getScalarSize () const
void	set (hsize_t x, hsize_t y, hsize_t z)
void	set (const Dimensions d)
uint32_t	getDims (void) const
void	swapDims (uint32_t dims)

Static Public Member Functions
static size_t	getSize ()

Detailed Description

Manages 1-3D size information. Can be used for MPI-positions/-dimensions or data-dimensions.

Definition at line 38 of file Dimensions.hpp.

Constructor & Destructor Documentation

Dimensions() [1/2]

splash::Dimensions::Dimensions ( void  )

inline

Default constructor. Initializes all dimensions to 1.

Definition at line 48 of file Dimensions.hpp.

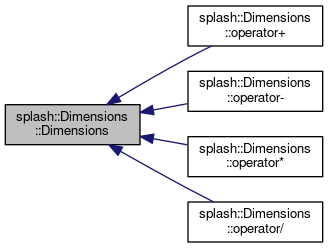

Here is the caller graph for this function:

Dimensions() [2/2]

splash::Dimensions::Dimensions ( hsize_t  x, hsize_t  y, hsize_t  z  )

inline

Constructor

Parameters

x	first dimension
y	second dimension
z	third dimension

Definition at line 59 of file Dimensions.hpp.

Member Function Documentation

getDims()

uint32_t splash::Dimensions::getDims ( void  ) const

inline

Get the number of dimensions.

Returns

Number of dimensions.

Definition at line 252 of file Dimensions.hpp.

Here is the caller graph for this function:

getPointer() [1/2]

hsize_t* splash::Dimensions::getPointer ( )

inline

Get pointer to internal data array.

Returns

Pointer to the internal data array.

Definition at line 192 of file Dimensions.hpp.

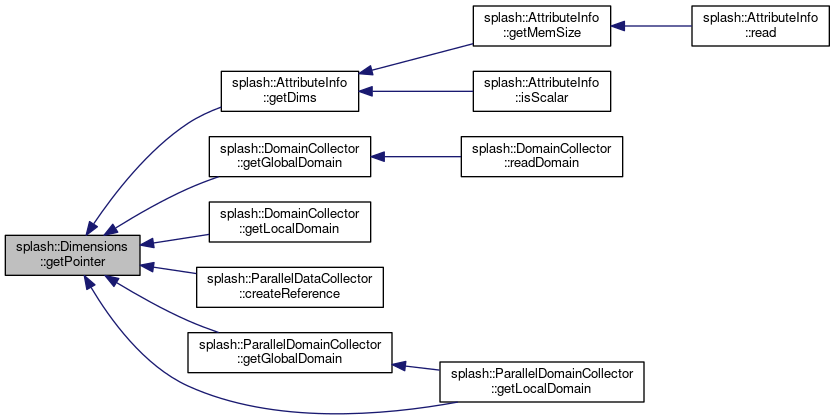

Here is the caller graph for this function:

getPointer() [2/2]

const hsize_t* splash::Dimensions::getPointer ( ) const

inline

Get pointer to internal data array.

Returns

Pointer to the internal data array.

Definition at line 201 of file Dimensions.hpp.

getScalarSize()

size_t splash::Dimensions::getScalarSize ( ) const

inline

Get the scalar size.

Returns

Scalar number of elements spanned by all dimensions.

Definition at line 219 of file Dimensions.hpp.

Here is the caller graph for this function:

getSize()

static size_t splash::Dimensions::getSize ( )

inlinestatic

Get the size in bytes of the data array.

Returns

Size in bytes of data array.

Definition at line 210 of file Dimensions.hpp.

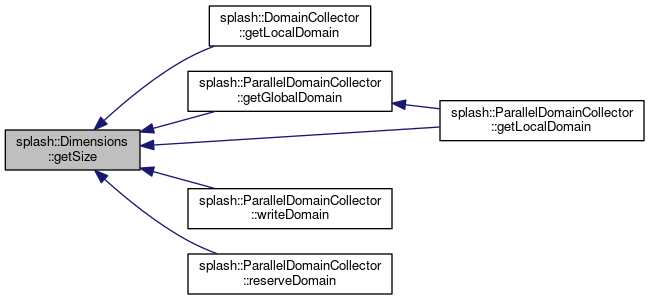

Here is the caller graph for this function:

operator!=()

bool splash::Dimensions::operator!= ( Dimensions const &  other ) const

inline

Element-wise comparison of two Dimensions

Parameters

other

other Dimensions

Returns

false if equal, true otherwise

Definition at line 171 of file Dimensions.hpp.

operator*()

Dimensions splash::Dimensions::operator* ( Dimensions const &  other ) const

inline

Element-wise multiplication of two Dimensions

Parameters

other

other Dimensions

Returns

new multiplied Dimensions

Definition at line 114 of file Dimensions.hpp.

Here is the call graph for this function:

operator+()

Dimensions splash::Dimensions::operator+ ( Dimensions const &  other ) const

inline

Element-wise addition of two Dimensions

Parameters

other

other Dimensions

Returns

new added Dimensions

Definition at line 92 of file Dimensions.hpp.

Here is the call graph for this function:

operator+=()

Dimensions splash::Dimensions::operator+= ( Dimensions const &  rhs )

inline

Element-wise addition of Dimensions rhs to this Dimensions

Parameters

rhs	other Dimensions

Returns

this Dimensions

Definition at line 136 of file Dimensions.hpp.

operator-()

Dimensions splash::Dimensions::operator- ( Dimensions const &  other ) const

inline

Element-wise substraction of two Dimensions

Parameters

other

other Dimensions

Returns

new substracted Dimensions

Definition at line 103 of file Dimensions.hpp.

Here is the call graph for this function:

operator-=()

Dimensions splash::Dimensions::operator-= ( Dimensions const &  rhs )

inline

Element-wise substraction of Dimensions rhs from this Dimensions

Parameters

rhs	other Dimensions

Returns

this Dimensions

Definition at line 148 of file Dimensions.hpp.

operator/()

Dimensions splash::Dimensions::operator/ ( Dimensions const &  other ) const

inline

Element-wise division of two Dimensions

Parameters

other

other Dimensions

Returns

new divided Dimensions

Definition at line 125 of file Dimensions.hpp.

Here is the call graph for this function:

operator==()

bool splash::Dimensions::operator== ( Dimensions const &  other ) const

inline

Element-wise comparison of two Dimensions

Parameters

other

other Dimensions

Returns

true if equal, false otherwise

Definition at line 160 of file Dimensions.hpp.

operator[]() [1/2]

hsize_t& splash::Dimensions::operator[] ( const hsize_t  t )

inline

Returns element t

Parameters

t	element index (1-3)

Returns

element

Definition at line 70 of file Dimensions.hpp.

operator[]() [2/2]

const hsize_t& splash::Dimensions::operator[] ( const hsize_t  t ) const

inline

Returns element t

Parameters

t	element index (1-3)

Returns

element

Definition at line 81 of file Dimensions.hpp.

set() [1/2]

void splash::Dimensions::set ( hsize_t  x, hsize_t  y, hsize_t  z  )

inline

Set dimensions.

Parameters

x	First dimension.
y	Second dimension.
z	Third dimension.

Definition at line 230 of file Dimensions.hpp.

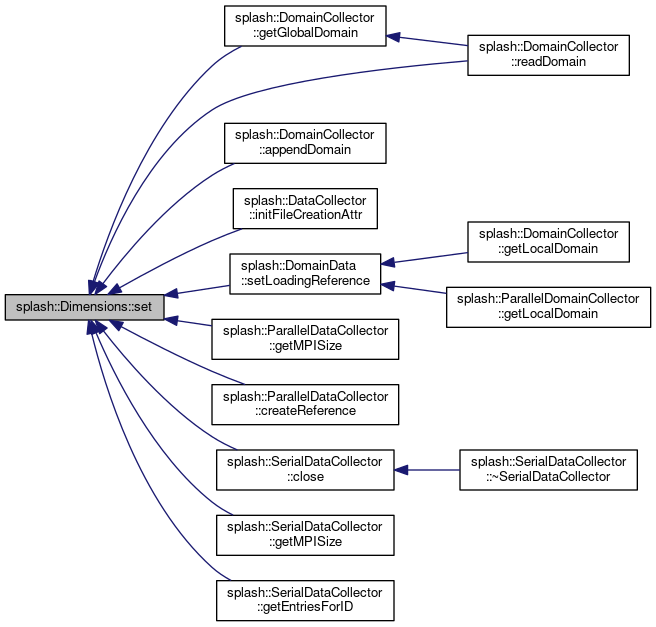

Here is the caller graph for this function:

set() [2/2]

void splash::Dimensions::set ( const Dimensions  d )

inline

Set dimensions.

Parameters

d	Dimensions object to copy data from.

Definition at line 241 of file Dimensions.hpp.

swapDims()

void splash::Dimensions::swapDims ( uint32_t  dims )

inline

Swaps the dimensions depending on dims.

Parameters

dims	Number of dimensions for swapping.

Definition at line 269 of file Dimensions.hpp.

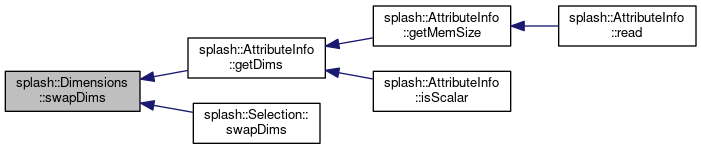

Here is the caller graph for this function:

toString()

std::string splash::Dimensions::toString ( ) const

inline

Returns the string representation of this object

Returns

string representation

Definition at line 181 of file Dimensions.hpp.

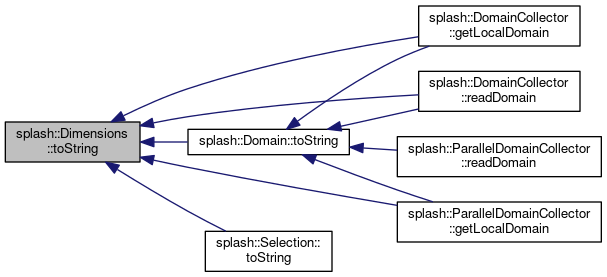

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• libSplash/src/include/splash/Dimensions.hpp
