splash::AttributeInfo Class Reference

#include <AttributeInfo.hpp>

Public Member Functions
	AttributeInfo (hid_t attr)
	AttributeInfo (H5AttributeId &attr)
	AttributeInfo (const AttributeInfo &other)
AttributeInfo &	operator= (const AttributeInfo &other)
size_t	getMemSize () throw (DCException)
const CollectionType &	getType () throw (DCException)
Dimensions	getDims () throw (DCException)
uint32_t	getNDims () throw (DCException)
bool	isScalar () throw (DCException)
bool	isVarSize () throw (DCException)
std::string	readName ()
void	read (const CollectionType &colType, void *buf) throw (DCException)
bool	readNoThrow (const CollectionType &colType, void *buf)
void	read (void *buf, size_t bufSize) throw (DCException)
void	close ()

Friends
void	swap (AttributeInfo &lhs, AttributeInfo &rhs)

Detailed Description

Class holding information about an attribute.

Usage example:

AttributeInfo info = dc.readAttribute(iterationId, "groupName", "attrName");
// Check that extents are as expected
if(!info.isScalar()) throw error(...);
// Optionally further checks
...
int result;
info.read(ColTypeInt(), &result);

Definition at line 50 of file AttributeInfo.hpp.

Constructor & Destructor Documentation

AttributeInfo()

splash::AttributeInfo::AttributeInfo ( H5AttributeId &  attr )

explicit

Construct from an attribute id, takes over ownership!

Definition at line 36 of file AttributeInfo.cpp.

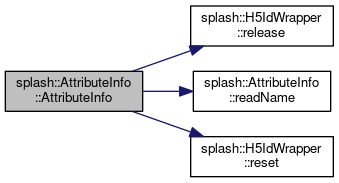

Here is the call graph for this function:

Member Function Documentation

close()

void splash::AttributeInfo::close

(

)

Closes the attribute invalidating all future calls to this object Note: If there are multiple instances relating to the same HDF5-Attribute all of them must be closed or destroyed

Definition at line 196 of file AttributeInfo.cpp.

Here is the caller graph for this function:

getDims()

Dimensions splash::AttributeInfo::getDims	(		)
throw	(	DCException
	)

Return the size in each dimension

Definition at line 141 of file AttributeInfo.cpp.

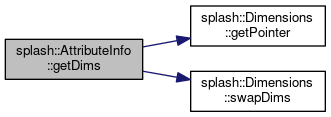

Here is the call graph for this function:

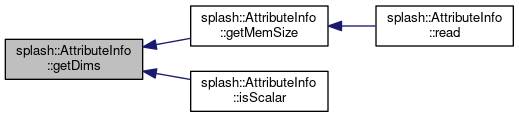

Here is the caller graph for this function:

getMemSize()

size_t splash::AttributeInfo::getMemSize	(		)
throw	(	DCException
	)

Return the size of the required memory in bytes when querying the value

Definition at line 115 of file AttributeInfo.cpp.

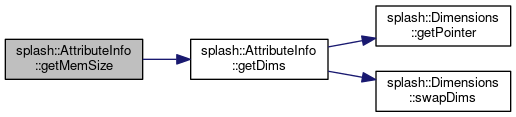

Here is the call graph for this function:

Here is the caller graph for this function:

getNDims()

uint32_t splash::AttributeInfo::getNDims	(		)
throw	(	DCException
	)

Return the number of dimensions

Definition at line 159 of file AttributeInfo.cpp.

Here is the caller graph for this function:

getType()

const CollectionType & splash::AttributeInfo::getType	(		)
throw	(	DCException
	)

Return the CollectionType. Might be ColTypeUnknown

Definition at line 131 of file AttributeInfo.cpp.

Here is the call graph for this function:

isScalar()

bool splash::AttributeInfo::isScalar ( ) throw ( DCException )

inline

Return whether this is a scalar value

Definition at line 72 of file AttributeInfo.hpp.

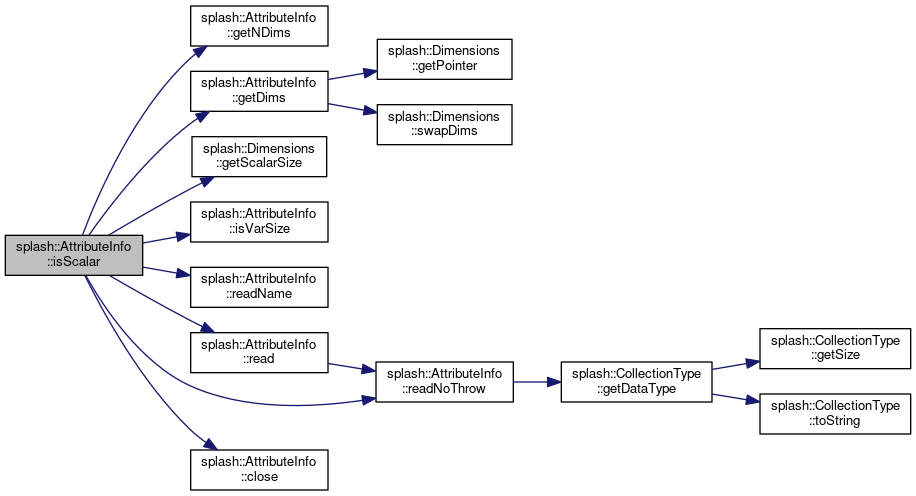

Here is the call graph for this function:

isVarSize()

bool splash::AttributeInfo::isVarSize	(		)
throw	(	DCException
	)

Return true, if the attribute has a variable size in which case reading it will only return its pointer

Definition at line 166 of file AttributeInfo.cpp.

Here is the caller graph for this function:

read() [1/2]

void splash::AttributeInfo::read	(	const CollectionType &	colType,
		void *	buf
	)
throw	(	DCException
	)

Read the data of this attribute into the buffer of the given type. Data conversion may occur, if required. See the HDF5 manual for details (6.10. Data Transfer: Datatype Conversion and Selection) Throws an exception if the attribute could not be read or converted

Parameters

colType	Type of the buffer
buf	Pointer to buffer. Size must be equal to getMemSize

Definition at line 172 of file AttributeInfo.cpp.

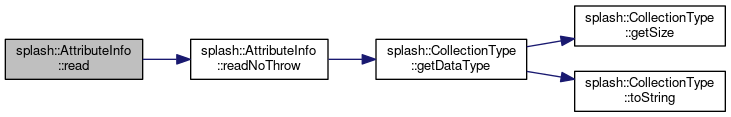

Here is the call graph for this function:

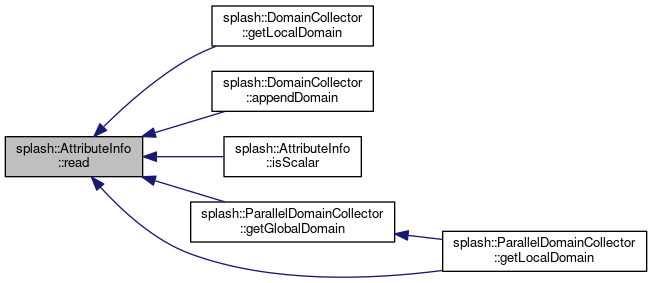

Here is the caller graph for this function:

read() [2/2]

void splash::AttributeInfo::read	(	void *	buf,
		size_t	bufSize
	)
throw	(	DCException
	)

Read the data of this attribute into the buffer of the given size. No data conversion occurs, so the type as found in the file is used. Throws an exception if the attribute could not be read or the buffer is to small. Warning: Might be unsafe if you are not the author of the HDF5 file or the data type differs from the expected one. Check the meta-data and/or pass the CollectionType to make sure you get what you expect.

Parameters

buf	Pointer to buffer
bufSize	Size of the buffer

Definition at line 183 of file AttributeInfo.cpp.

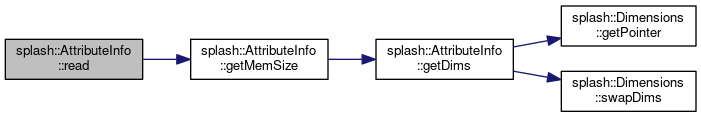

Here is the call graph for this function:

readName()

std::string splash::AttributeInfo::readName

(

)

Read the name of the attribute. Returns an empty string on error

Definition at line 101 of file AttributeInfo.cpp.

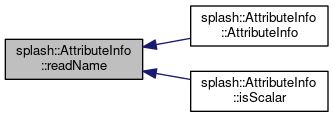

Here is the caller graph for this function:

readNoThrow()

bool splash::AttributeInfo::readNoThrow	(	const CollectionType &	colType,
		void *	buf
	)

Read the data of this attribute into the buffer of the given type. Data conversion may occur, if required. See the HDF5 manual for details (6.10. Data Transfer: Datatype Conversion and Selection) Does not throw exception, so it can be used for trying different types

Parameters

colType	Type of the buffer
buf	Pointer to buffer. Size must be equal to getMemSize

Returns

True on success, else false

Definition at line 178 of file AttributeInfo.cpp.

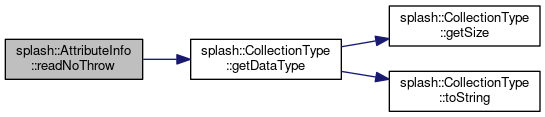

Here is the call graph for this function:

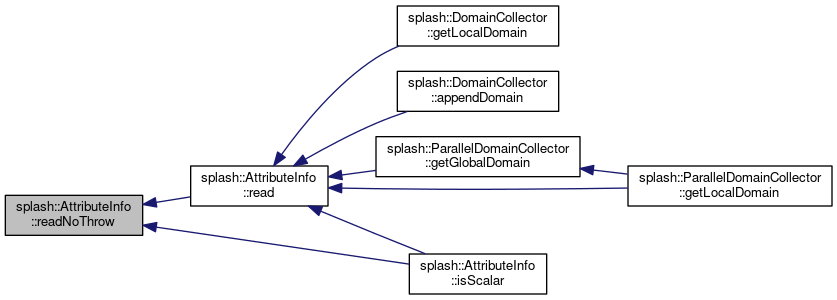

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• libSplash/src/include/splash/AttributeInfo.hpp
• libSplash/src/AttributeInfo.cpp
