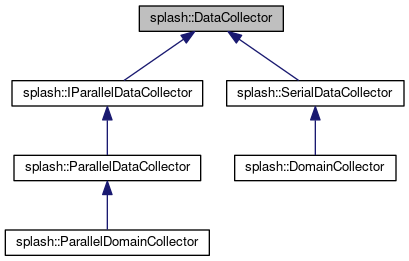

Inheritance diagram for splash::DataCollector:

[legend]

Classes
struct	_DCEntry

struct	_FileCreationAttr

Public Types
enum	FileAccType { FAT_CREATE, FAT_READ, FAT_READ_MERGED, FAT_WRITE }

typedef struct splash::DataCollector::_FileCreationAttr	FileCreationAttr

typedef struct splash::DataCollector::_DCEntry	DCEntry

Public Member Functions
virtual	~DataCollector ()

virtual void	open (const char *filename, FileCreationAttr &attr)=0

virtual void	close ()=0

virtual int32_t	getMaxID ()=0

virtual void	getMPISize (Dimensions &mpiSize)=0

virtual void	getEntryIDs (int32_t ids, size_t count)=0

virtual void	getEntriesForID (int32_t id, DCEntry entries, size_t count)=0

virtual void	write (int32_t id, const CollectionType &type, uint32_t ndims, const Selection select, const char name, const void buf)=0

virtual void	append (int32_t id, const CollectionType &type, size_t count, const char name, const void buf)=0

virtual void	append (int32_t id, const CollectionType &type, size_t count, size_t offset, size_t stride, const char name, const void buf)=0

virtual void	remove (int32_t id)=0

virtual void	remove (int32_t id, const char *name)=0

virtual void	createReference (int32_t srcID, const char srcName, int32_t dstID, const char dstName)=0

virtual void	createReference (int32_t srcID, const char srcName, int32_t dstID, const char dstName, Dimensions count, Dimensions offset, Dimensions stride)=0

virtual AttributeInfo	readGlobalAttributeInfo (int32_t id, const char name, Dimensions mpiPosition=NULL)=0

virtual void	readGlobalAttribute (const char name, void buf, Dimensions *mpiPosition=NULL)=0

virtual void	writeGlobalAttribute (const CollectionType &type, const char name, const void buf)=0

virtual void	writeGlobalAttribute (const CollectionType &type, const char name, uint32_t ndims, const Dimensions dims, const void buf)=0

virtual AttributeInfo	readAttributeInfo (int32_t id, const char dataName, const char attrName, Dimensions *mpiPosition=NULL)=0

virtual void	readAttribute (int32_t id, const char dataName, const char attrName, void buf, Dimensions mpiPosition=NULL)=0

virtual void	writeAttribute (int32_t id, const CollectionType &type, const char dataName, const char attrName, const void *buf)=0

virtual void	writeAttribute (int32_t id, const CollectionType &type, const char dataName, const char attrName, uint32_t ndims, const Dimensions dims, const void *buf)=0

virtual void	read (int32_t id, const char name, Dimensions &sizeRead, void buf)=0

virtual void	read (int32_t id, const char name, const Dimensions dstBuffer, const Dimensions dstOffset, Dimensions &sizeRead, void buf)=0

virtual CollectionType *	readMeta (int32_t id, const char *name, const Dimensions dstBuffer, const Dimensions dstOffset, Dimensions &sizeRead)=0

Static Public Member Functions
static void	initFileCreationAttr (FileCreationAttr &attr)

Detailed Description

Definition at line 61 of file DataCollector.hpp.

Member Typedef Documentation

◆ DCEntry

typedef struct splash::DataCollector::_DCEntry splash::DataCollector::DCEntry

Information on a specific dataset in a HDF5 file.

◆ FileCreationAttr

typedef struct splash::DataCollector::_FileCreationAttr splash::DataCollector::FileCreationAttr

Attributes passed when calling DataCollector#open

Member Enumeration Documentation

◆ FileAccType

enum splash::DataCollector::FileAccType

flags for opening files

Definition at line 68 of file DataCollector.hpp.

Constructor & Destructor Documentation

◆ ~DataCollector()

virtual splash::DataCollector::~DataCollector ( )

inlinevirtual

Destructor

Definition at line 141 of file DataCollector.hpp.

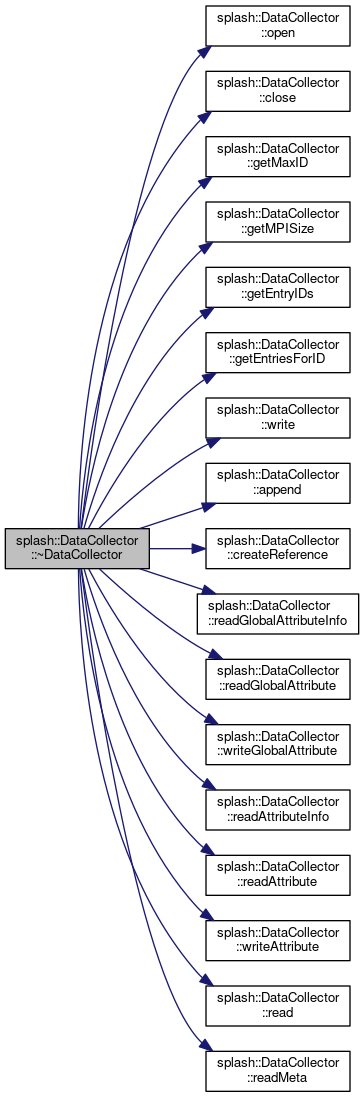

Here is the call graph for this function:

Member Function Documentation

◆ append() [1/2]

virtual void splash::DataCollector::append	(	int32_t	id,
		const CollectionType &	type,
		size_t	count,
		const char *	name,
		const void *	buf
	)

pure virtual

Appends 1-dimensional data in a HDF5 file.

The target dataset is created if necessary. If it already exists, data is appended to the end.

Parameters

id	ID for iteration.
type	Type information for data.
count	Number of elements to append.
name	Name for the dataset to create/append.
buf	Buffer to append.

Implemented in splash::SerialDataCollector, and splash::IParallelDataCollector.

Here is the caller graph for this function:

◆ append() [2/2]

virtual void splash::DataCollector::append	(	int32_t	id,
		const CollectionType &	type,
		size_t	count,
		size_t	offset,
		size_t	stride,
		const char *	name,
		const void *	buf
	)

pure virtual

Appends 1-dimensional data in a HDF5 file using striding.

The target dataset is created if necessary. If it already exists, data is appended to the end. The data is read using striding from source buffer buf.

Parameters

id	id for fileentry. e.g. iteration
type	Type information for data.
count	Number of elements to append.
offset	Offset in elements to start reading from in `buf`.
stride	Striding to be used for reading from `buf`, 1 means 'no striding'. `buf` must contain at least (striding * count) elements.
name	Name for the dataset to create/append.
buf	Buffer to append.

Implemented in splash::SerialDataCollector, and splash::IParallelDataCollector.

◆ close()

virtual void splash::DataCollector::close ( )

pure virtual

Closes open files and releases internal buffers.

Must be called by user when finished writing/reading data.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ createReference() [1/2]

virtual void splash::DataCollector::createReference	(	int32_t	srcID,
		const char *	srcName,
		int32_t	dstID,
		const char *	dstName
	)

pure virtual

Creates an object reference to an existing dataset in the same HDF5 file.

Parameters

srcID	ID of the iteration holding the source dataset.
srcName	Name of the existing source dataset.
dstID	ID of the simulation iteration holding the created reference dataset. If this group does not exist, it is created.
dstName	Name of the created reference.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ createReference() [2/2]

virtual void splash::DataCollector::createReference	(	int32_t	srcID,
		const char *	srcName,
		int32_t	dstID,
		const char *	dstName,
		Dimensions	count,
		Dimensions	offset,
		Dimensions	stride
	)

pure virtual

Creates a dataset region reference to an existing dataset in the same HDF5 file.

Parameters

srcID	ID of the iteration holding the source dataset.
srcName	Name of the existing source dataset.
dstID	ID of the simulation iteration holding the created reference dataset. If this group does not exist, it is created.
dstName	Name of the created reference.
count	Number of elements referenced from the source dataset.
offset	Offset in elements in the source dataset.
stride	Striding in elements in the source dataset.

Implemented in splash::SerialDataCollector.

◆ getEntriesForID()

virtual void splash::DataCollector::getEntriesForID	(	int32_t	id,
		DCEntry *	entries,
		size_t *	count
	)

pure virtual

Returns all datasets for an ID. The caller must ensure that there is enough space in entries to hold count elements.

Parameters

id	ID for iteration.
entries	Pointer to an array with at least `count` elements, can be NULL.
count	Returns the number of elements in `entries`, can be NULL.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ getEntryIDs()

virtual void splash::DataCollector::getEntryIDs	(	int32_t *	ids,
		size_t *	count
	)

pure virtual

Returns all IDs in an opened file. The caller must ensure that there is enough space in ids to hold count elements.

Parameters

ids	Pointer to an array with at least `count` entries, can be NULL.
count	Returns the number of entries in `ids`, can be NULL.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ getMaxID()

virtual int32_t splash::DataCollector::getMaxID ( )

pure virtual

Returns: Returns highest iteration ID.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ getMPISize()

virtual void splash::DataCollector::getMPISize ( Dimensions & mpiSize )

pure virtual

Returns the MPI topology used for creating files.

Parameters

mpiSize Contains MPI topology.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ initFileCreationAttr()

static void splash::DataCollector::initFileCreationAttr ( FileCreationAttr & attr )

inlinestatic

Initializes FileCreationAttr with default values. (compression = false, access type = FAT_CREATE, position = (0, 0, 0), size = (1, 1, 1))

Parameters

attr	file attributes to initialize

Definition at line 130 of file DataCollector.hpp.

Here is the call graph for this function:

◆ open()

virtual void splash::DataCollector::open	(	const char *	filename,
		FileCreationAttr &	attr
	)

pure virtual

Opens one or multiple files.

Parameters

filename	Name of the file(s) to open (the common part without index identifiers).
attr	Struct passing several parameters on how to access files.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ read() [1/2]

virtual void splash::DataCollector::read	(	int32_t	id,
		const char *	name,
		Dimensions &	sizeRead,
		void *	buf
	)

pure virtual

Reads data from HDF5 file. If data is to be read (instead of only its size in the file), the destination buffer (buf) must be allocated already.

Parameters

id	ID for iteration.
name	Name for the dataset.
sizeRead	Returns the size of the data in the file.
buf	Buffer to read from file, can be NULL.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ read() [2/2]

virtual void splash::DataCollector::read	(	int32_t	id,
		const char *	name,
		const Dimensions	dstBuffer,
		const Dimensions	dstOffset,
		Dimensions &	sizeRead,
		void *	buf
	)

pure virtual

Reads data from HDF5 file. If data is to be read (instead of only its size in the file), the destination buffer (buf) must be allocated already.

Parameters

id	ID for iteration.
name	Name for the dataset.
dstBuffer	Size of the buffer `buf` to read to.
dstOffset	Offset in destination buffer to read to.
sizeRead	Returns the size of the data in the file.
buf	Buffer to read from file, can be NULL.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

◆ readAttribute()

virtual void splash::DataCollector::readAttribute	(	int32_t	id,
		const char *	dataName,
		const char *	attrName,
		void *	buf,
		Dimensions *	mpiPosition = `NULL`
	)

pure virtual

Reads an attribute from a single dataset.

Parameters

id	ID for iteration.
dataName	Name of the dataset in group `id` to read attribute from. If dataName is NULL, the attribute is read from the iteration group.
attrName	Name of the attribute.
buf	Buffer to read attribute to.
mpiPosition	Pointer to Dimensions class. Identifies MPI-position-specific file while in FAT_READ_MERGED mode. Use NULL to read from default file index.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ readAttributeInfo()

virtual AttributeInfo splash::DataCollector::readAttributeInfo	(	int32_t	id,
		const char *	dataName,
		const char *	attrName,
		Dimensions *	mpiPosition = `NULL`
	)

pure virtual

Reads attribute meta data from a single dataset.

Parameters

id	ID for iteration.
dataName	Name of the dataset in group `id` to read attribute from. If dataName is NULL, the attribute is read from the iteration group.
attrName	Name of the attribute.
mpiPosition	Pointer to Dimensions class. Identifies MPI-position-specific file while in FAT_READ_MERGED mode. Use NULL to read from default file index.

Returns: Pointer to heap allocated DCAttributeInfo instance or NULL if not found. Must be freed by the caller.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ readGlobalAttribute()

virtual void splash::DataCollector::readGlobalAttribute	(	const char *	name,
		void *	buf,
		Dimensions *	mpiPosition = `NULL`
	)

pure virtual

Reads global attribute from HDF5 file.

Parameters

name	Name for the attribute.
buf	Buffer to read attribute to.
mpiPosition	Pointer to Dimensions class. Identifies MPI-position-specific custom group. Use NULL to read from default group.

Implemented in splash::SerialDataCollector, and splash::IParallelDataCollector.

Here is the caller graph for this function:

◆ readGlobalAttributeInfo()

virtual AttributeInfo splash::DataCollector::readGlobalAttributeInfo	(	int32_t	id,
		const char *	name,
		Dimensions *	mpiPosition = `NULL`
	)

pure virtual

Reads global attribute meta information from HDF5 file.

Parameters

id	ID for iteration.
name	Name for the attribute.
mpiPosition	Pointer to Dimensions class. Identifies MPI-position-specific custom group. Use NULL to read from default group.

Returns: Pointer to heap allocated DCAttributeInfo instance or NULL if not found. Must be freed by the caller.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ readMeta()

virtual CollectionType* splash::DataCollector::readMeta	(	int32_t	id,
		const char *	name,
		const Dimensions	dstBuffer,
		const Dimensions	dstOffset,
		Dimensions &	sizeRead
	)

pure virtual

Reads meta data from HDF5 file.

Parameters

id	ID of iteration.
name	Name of the dataset.
dstBuffer	Size of the dataset.
dstOffset	Offset in destination dataset.
sizeRead	Returns the size of the data in the file.

Returns: The CollectionType of the dataset as a heap allocated object. The object must be freed by the caller at the end of the object's lifetime.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ remove() [1/2]

virtual void splash::DataCollector::remove ( int32_t id )

pure virtual

Removes a simulation iteration from the HDF5 file.

Recursively removes all datasets and attributes within the iteration.

Parameters

id	ID to remove.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

◆ remove() [2/2]

virtual void splash::DataCollector::remove	(	int32_t	id,
		const char *	name
	)

pure virtual

Removes a dataset from a HDF5 file.

Parameters

id	ID holding the dataset to be removed.
name	Name of the dataset to be removed.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

◆ write()

virtual void splash::DataCollector::write	(	int32_t	id,
		const CollectionType &	type,
		uint32_t	ndims,
		const Selection	select,
		const char *	name,
		const void *	buf
	)

pure virtual

Writes data to HDF5 file.

Parameters

id	ID for iteration.
type	Type information for data.
ndims	Number of dimensions (1-3).
select	Selection in src buffer
name	Name for the dataset.
buf	Buffer for writing.

Implemented in splash::SerialDataCollector, splash::ParallelDataCollector, and splash::IParallelDataCollector.

Here is the caller graph for this function:

◆ writeAttribute() [1/2]

virtual void splash::DataCollector::writeAttribute	(	int32_t	id,
		const CollectionType &	type,
		const char *	dataName,
		const char *	attrName,
		const void *	buf
	)

pure virtual

Writes an attribute to a single dataset.

Parameters

id	ID for iteration.
type	Type information for data.
dataName	Name of the dataset in group `id` to write attribute to. If dataName is NULL, the attribute is written for the iteration group. If the path dataName does not yet exist, missing groups will be created.
attrName	Name of the attribute.
buf	Buffer to be written as attribute.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

Here is the caller graph for this function:

◆ writeAttribute() [2/2]

virtual void splash::DataCollector::writeAttribute	(	int32_t	id,
		const CollectionType &	type,
		const char *	dataName,
		const char *	attrName,
		uint32_t	ndims,
		const Dimensions	dims,
		const void *	buf
	)

pure virtual

Writes an attribute to a single dataset.

Parameters

id	ID for iteration.
type	Type information for data.
dataName	Name of the dataset in group `id` to write attribute to. If dataName is NULL, the attribute is written for the iteration group.
attrName	Name of the attribute.
ndims	Number of dimensions (1-3)
dims	Number of elements
buf	Buffer to be written as attribute.

Implemented in splash::SerialDataCollector, and splash::ParallelDataCollector.

◆ writeGlobalAttribute() [1/2]

virtual void splash::DataCollector::writeGlobalAttribute	(	const CollectionType &	type,
		const char *	name,
		const void *	buf
	)

pure virtual

Writes global attribute to HDF5 file (default group).

Parameters

type	Type information for data.
name	Name of the attribute.
buf	Buffer to be written as attribute.

Implemented in splash::SerialDataCollector, and splash::IParallelDataCollector.

Here is the caller graph for this function:

◆ writeGlobalAttribute() [2/2]

virtual void splash::DataCollector::writeGlobalAttribute	(	const CollectionType &	type,
		const char *	name,
		uint32_t	ndims,
		const Dimensions	dims,
		const void *	buf
	)

pure virtual

Writes global attribute to HDF5 file (default group).

Parameters

type	Type information for data.
name	Name of the attribute.
ndims	Number of dimensions (1-3)
dims	Number of elements
buf	Buffer to be written as attribute.

Implemented in splash::SerialDataCollector, and splash::IParallelDataCollector.

The documentation for this class was generated from the following file:

libSplash/src/include/splash/DataCollector.hpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

Member Typedef Documentation

◆ DCEntry

◆ FileCreationAttr

Member Enumeration Documentation

◆ FileAccType

Constructor & Destructor Documentation

◆ ~DataCollector()

Member Function Documentation

◆ append() [1/2]

◆ append() [2/2]

◆ close()

◆ createReference() [1/2]

◆ createReference() [2/2]

◆ getEntriesForID()

◆ getEntryIDs()

◆ getMaxID()

◆ getMPISize()

◆ initFileCreationAttr()

◆ open()

◆ read() [1/2]

◆ read() [2/2]

◆ readAttribute()

◆ readAttributeInfo()

◆ readGlobalAttribute()

◆ readGlobalAttributeInfo()

◆ readMeta()

◆ remove() [1/2]

◆ remove() [2/2]

◆ write()

◆ writeAttribute() [1/2]

◆ writeAttribute() [2/2]

◆ writeGlobalAttribute() [1/2]

◆ writeGlobalAttribute() [2/2]
